 Conical Spring SealsÂ
Optimal conical coils create uniform face pressure for narrow chambers.
Conical Spring Elastomer Bellow Unbalanced Seal
Seal Size
15-100 mm
Pressure
12 kg/cm²
Speed
10 m/s
Temperature
-10…180°C
Carbon, Silicon, TC
Rotary Face
Silicon, TC, SS, Ceramic
Stationary Seat
Secondary Seal
Viton, NBR, EPDM, Silicon
SS304, SS316, SS316L
Metal Parts
Components
Elastomer Bellow, SS Casing, SS Spring, Seal Face, Stationary Seat, Stationary Packing
Chemical Plant
Oil Refinery
Papermill
Conical Spring Elastomer Bellow Unbalanced Seal
12-50 mm
Seal Size
Pressure
10 kg/cm²
Speed
10 m/s
Temperature
-15…180°C
Ceramic, Silicon, TC
Rotary Face
Stationary Seat
Carbon,Silicon, TC
Secondary Seal
Viton, NBR, EPDM, Silicon
Metal Parts
SS304, SS316
Components
Elastomer Bellow, SS Casing, SS Spring, Seal Face, Stationary Seat, Viton O-Ring
Chemical Plant
Oil Refinery
Water
.jpg)
Conical Spring Balanced Seal
12-80 mm
Seal Size
Speed
13 m/s
Carbon, Silicon, TC
Rotary Face
Secondary Seal
Viton, NBR, EPDM, Silicon,PTFE
Components
SS Casing, SS Spring, Seal Face, Stationary Seat, Viton O-Ring, SS Back Part, SS Support Ring
Chemical Plant
Sugar Plant
Oil Refinery
10 kg/cm²
Pressure
Temperature
-25…200°C
Silicon, TC, SS,Ceramic
Stationary Seat
SS304, SS316, SS316L
Metal Parts

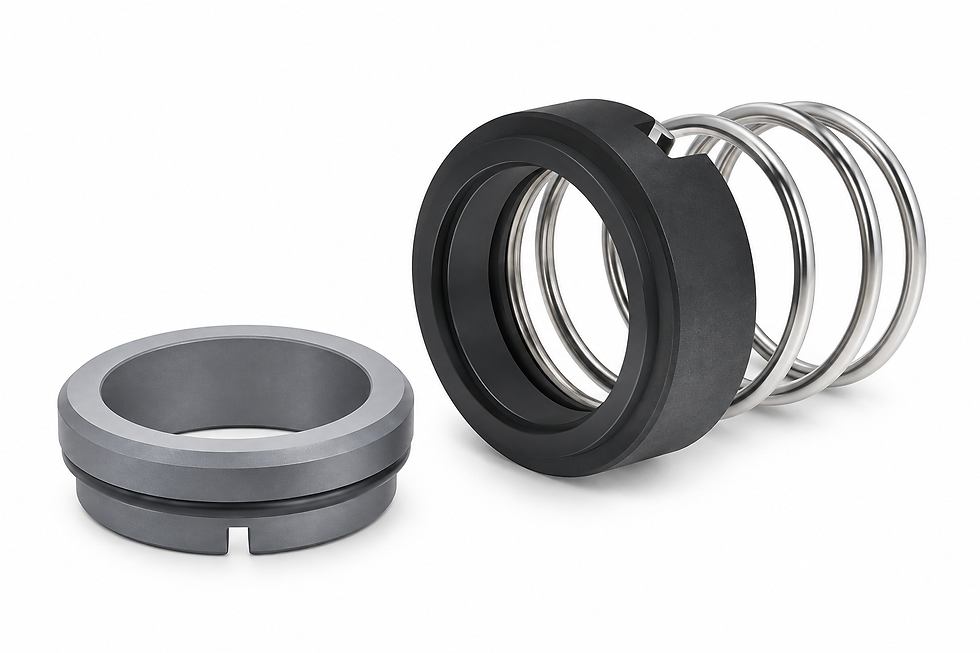

Conical Spring Unbalanced Seal
Seal Size
12-80 mm
Pressure
10 kg/cm²
Speed
10 m/s
Temperature
-15…180°C
Rotary Face
Carbon, Silicon, TC
Silicon, TC,SS, Ceramic
Stationary Seat
Secondary Seal
Viton, NBR, EPDM, Silicon, PTFE
SS304, SS316, SS316L
Metal Parts
Components
SS Casing, SS Spring, Seal Face, Stationary Seat, Viton O-Ring, SS Back Part, SS Support Ring
Chemical Plant
Oil Refinery
Sugar Plant
Conical Spring Unbalanced Seal
15-50 mm
Seal Size
Pressure
12 kg/cm²
Speed
10 m/s
Temperature
-20…200°C
Ceramic, Silicon, TC
Rotary Face
Silicon, TC, SS, Ceramic
Stationary Seat
Secondary Seal
Viton, NBR, EPDM, Silicon, PTFE
Metal Parts
SS304, SS316
Components
SS Spring, Seal Face, Stationary Seat, Viton O-Ring, SS Back Parts, SS Support Ring
Chemical Plant
Oil Refinery
Water
